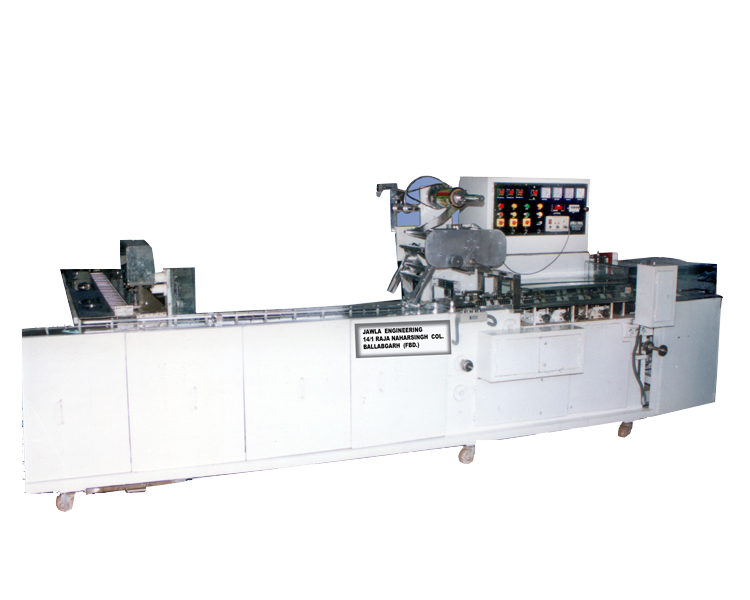

JE- 511 One-Edge Packaging Machine With Cream Biscuit Feeder
Packing Products
Cream Biscuit
| Product Application | 50 gm, 75 gm & 100 gm |
| Pouch Size | To Be Confirm |
| Sealing Type | Center Seal |
| Packing Speed | 80-150 PPM |
| Filling System | Automatic Feeding on L shape Conveyor |
| Sealing Mechanism | Continuous |
| Packaging Film | Heat Seal able laminated film in roll firm |
| Maximum Film Roll Width | 250 mm |
| Hopper Capacity | 35 kg (SS-316 Food Grade) |
| Main Body Type | Fabricated MS |
| Mechanical Parts | EN Series |
| Main Body covers | Fabricated Powder Coated |
| All Product Contact Parts | SS made |
| Temperature Controllers | PID Based (Digital) |
| Photo Cell | Auto Colors Teach |
| Electrical Power | 3 KW |
| Machine Dimension | 180 x 90 x 60 (W x L x H In Inches) |
| Machines Weight | 1400 Kg (Approx) |
| Electrical Components | Standard Quality |
| Chain Conveyor | 8 feet long conveyot with auto slizer |
