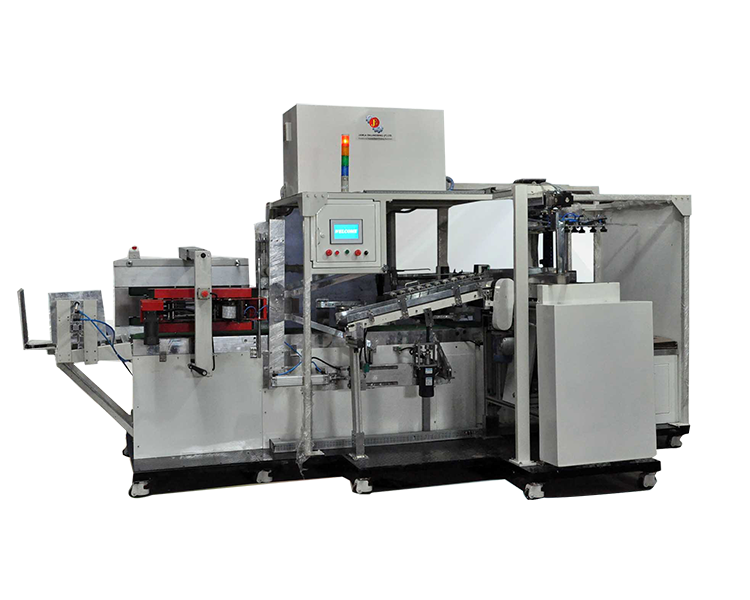

JE- 513 Automatic Case Packer Machine
Packing Products
60 OUTERS/CARTON
| Packing Speed | 2 min/carton |
| Filling System | Horizontal Pusher with Servo drive |
| Main Body Type | Fabricated MS |
| Main Body covers | Fabricated Powder Coated |
| All Product Contact Parts | SS and Aluminium made |
| Pneumatic Type | Festo, 8 Cylinder with multiple strokes |
| Compressed Air Required | 6 mpa with pressure repulated |
| Machine Dimension | 2800 x 1350 x 1950 (H x W x L In MM) |
| Sealing Application | Center taping in horizontal as well as vertival applications |
| Main Motor | 180 watt a.c. synchronous motor with gear box, 90 watt reversible a.c. motor , 25 watt reversible motor, 750 watt servo motor with 10:1 gear box, a.c. Drive for a.c. Synchronous motor |
